Voki
Author: Artur Wójciak
House plan - Voki
House plans - Voki
House plan parameters
Building area::
160.77 m²
Net volume::
750.07 m³
Building dimensions:
18.9x12.0 m
Lot dimensions (minimal):
26.9x22.5 m
Building height:
8.20 m
Roof angle:
Roof area:
0.0 m²
Description
A one-storey house with open parking for 2cars, without basement, intended for 4-5-person family.
Technology and construction
A house was designed in bricks technology and steel framework. Light steel structure of external walls is filled with glass panels in aluminum facade system. Additionally the part of elevation panels was designed of technological PV glass adapted for generating the electricity from the solar exposure (photovoltaic modules e.g. SCHÜCO). PV modules can be installed in the any place on the elevation provided that they aren't colliding with blinds, the door and windows. Solar collectors and air inrates, as well as launchers of the heating system and the air-conditioning of the house are on a roof.
Finish

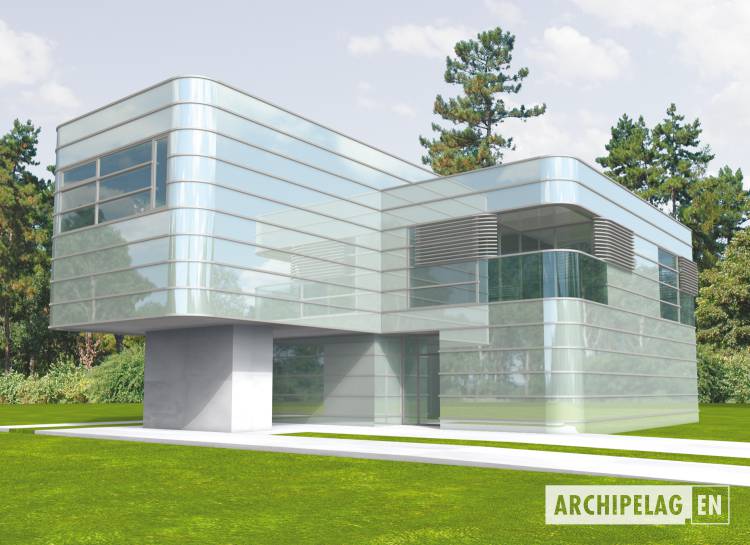

Elevations were designed so that making of windows was possible in the any place (visualisations are presenting the model solution).

House plan price: 5599 € / 4199 £

Recommended house plans

Verona G1 Verona G1
Aron G1 Aron G1
Dionisio G3 Dionisio G3
Rodrigo III G1 Rodrigo III G1
EX 5 G1 EX 5 G1
EX 5 G1 Soft EX 5 G1 Soft
Franc Franc
EX 10 Soft EX 10 Soft
Marian G2 Marian G2
Rudolf Rudolf
Rony G1 Rony G1
EX 10 II EX 10 II
Vince Vince
Karol Karol
Shadow Shadow
Dionisio G2 Dionisio G2
Print
Usable area:263.93m²
Interior area:273.10m²
• GarageNone
• BasementNone
• AtticNone
house: multi-storied house, for the Courageous number of inhabitants : 4-5 garage: no fireplace: yes orangery: no Basement: no Building: stand alone house expansion: no
