Raphael G1
Author: Artur Wójciak
House plan - Raphael G1
House plans - Raphael G1
House plan parameters
Building area::
130.81 m²
Net volume::
514.32 m³
Building dimensions:
8.7x14.9 m
Lot dimensions (minimal):
16.7x26.6 m
Building height:
8.60 m
Roof angle:
Roof area:
192.9 m²

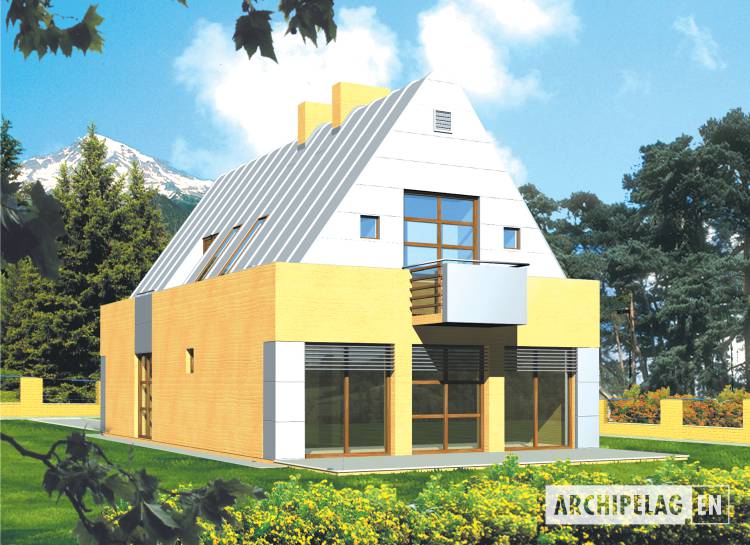

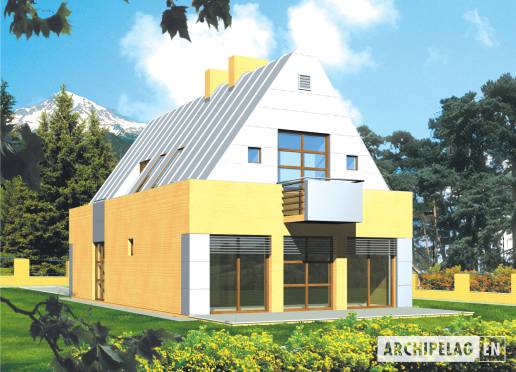

The house with functional attic with built in garage, without basement, intended for 3-4-person family. On the ground floor designed daily room with fireplace, kitchen with dinette and utility room. On the attic are 3 bedrooms and 2 bathrooms.
Technology and construction
The house designed in bricks technology with ferro concrete ceiling. Internal wooden stairs. The roof of wooden or steel structure covered with titan-zinc sheet.
Facades made with sandstone and staidness steel sheet. Woodwork windows.

House plan price: 629 € / 469 £

Recommended house plans

Projekt domu: Klaud G1 Klaud G1
Projekt domu: Thomas G2 Thomas G2
Projekt domu: EX 3 G1 EX 3 G1
Projekt domu: EX 9 G1 B EX 9 G1 B
Projekt domu: E12 ECONOMIC A E12 ECONOMIC A
Projekt domu: Nikita Nikita
Projekt domu: Oscar ENERGO Oscar ENERGO
Projekt domu: Tad G1 Tad G1
Projekt domu: Neo II G1 ENERGO Neo II G1 ENERGO
Projekt domu: EX 9 G1 B Soft EX 9 G1 B Soft
Projekt domu: Teddy G1 Teddy G1
Projekt domu: Noel G1 ENERGO Noel G1 ENERGO
Projekt domu: Igor G1 Igor G1
Projekt domu: Pyramid G2 Pyramid G2
Projekt domu: Oscar ENERGO PLUS Oscar ENERGO PLUS
Projekt domu: Marise III G1 ENERGO Marise III G1 ENERGO
Usable area:145.09m²
Interior area:215.31m²
• Garage20.51m²
• BasementNone
• AtticNone
house: with , for the Courageous number of inhabitants : 2-4 garage: bay #1 fireplace: yes orangery: no Basement: no Building: stand alone house expansion: yes
