Rafael III
Available house plan versions:
Version 1
,
Version 2
,
Version 4
,
Version 5
,
Version 6
,
Version 8
,
Version 10
Author: Artur Wójciak

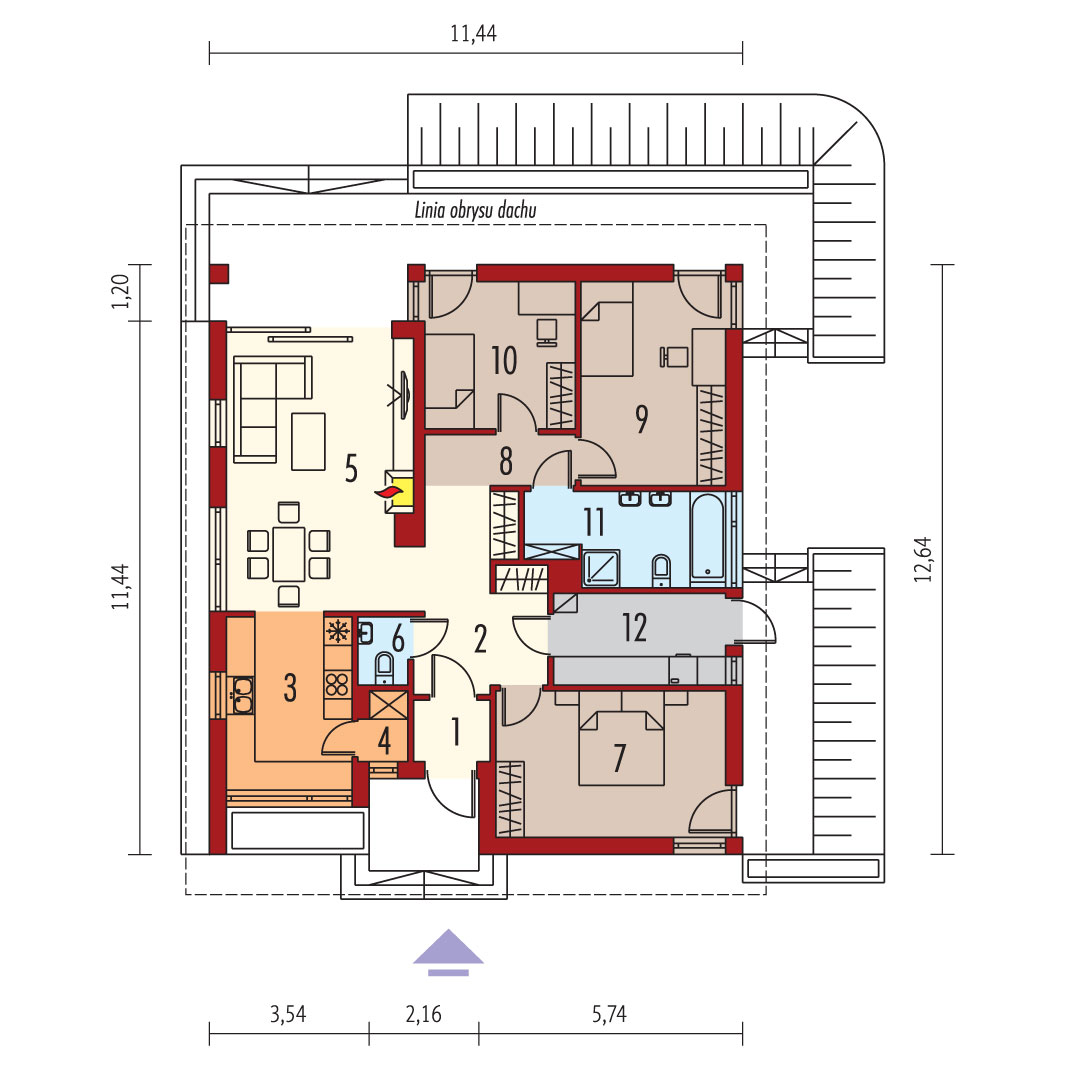

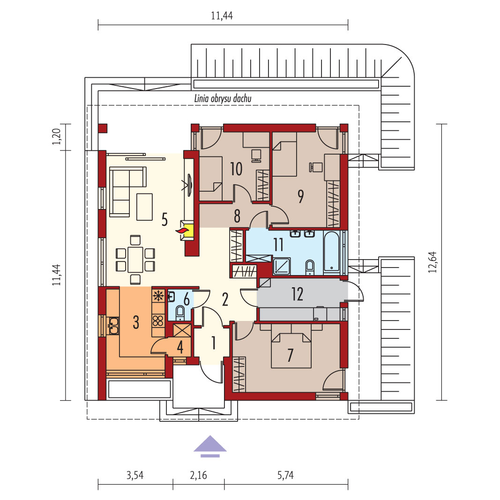

1. Vestibule
1.84 m²
7. Bedroom
14.90 m²
2. Hall
9.76 m²
8. Corridor
3.62 m²
3. Kitchen
9.79 m²
9. Bedroom
13.04 m²
4. Pantry
1.54 m²
10. Bedroom
9.98 m²
5. Daily room
22.53 m²
11. Bathroom
7.44 m²
6. Toilet
1.60 m²
12. Boiler room
7.50 m²
Next house plan
Previous house plan
List of house plans
Recommended house plans
Kleo G1
Kama
Dylan G2
Francis II G1 ECONOMIC A
Selena G2
Astrid M G2
Eris G2 B
Bob II
Francis
Florence II G1
Andrea
Barbara
Francis II G1 ECONOMIC B
Lila
Alina
Francis G1
Print
Usable area:
103.54m²
Interior area:
114.33m²
• Garage
None
• boiler-room
7.50m²
• Basement
None
• Attic
None
